Built-in Wine Cooler 22 bottles Avintage AVU22TX1
Avintage


The Avintage AVU22TX1 wine cooler offers 22-bottle capacity in an adjustable temperature zone, with an elegant stainless steel design, vertical storage, and Vinotag® connectivity. Perfect for undercounter installation.


Choose options


The Avintage AVU22TX1 wine cooler offers 22-bottle capacity in an adjustable temperature zone, with an elegant stainless steel design, vertical storage, and Vinotag® connectivity. Perfect for undercounter installation.



The Avintage AVU22TX1 wine cooler offers 22-bottle capacity in an adjustable temperature zone, with an elegant stainless steel design, vertical storage, and Vinotag® connectivity. Perfect for undercounter installation.

Avintage AVU22TX1: 22-bottle built-in wine cellar with ventilated cooling, reversible stainless steel door, vertical storage, and intelligent Vinotag® management. Precise and elegant storage for your kitchen.
Main features
- Service wine cellar with capacity for 22 bottles*.
- Installation type: Freestanding and undermount.
- Temperature zones: 1 zone.
- Operating range: 5°C to 20°C.
- Cooling system: Compressor with ventilated cooling.
- Design: Black body and stainless steel door frame with discreet undermount handle.
- Reversible glass door with triple grey glazing, tempered glass and anti-UV treatment.
- Includes 4 semi-sliding steel wire shelves with wooden fronts.
- Possibility of vertical storage for 3 bottles.
- Electronic control with white screen thermometer.
- White LED lighting with switch.
- Regulated humidity: Humidity maintenance tank.
- Anti-vibration system.
- Visual and acoustic security alarms.
- Compatible with the Vinotag® app for digital registration, peak and stock level alerts, access to wine cards (Vivino®), and bottle location.
- Rear plumbing pass-through and removable vent for easy undercounter installation.
- 4 adjustable feet (height 7 cm).
- Net dimensions (Width x Depth x Height cm): 29.5 x 57.4 x 81.7.
Avintage AVU22TX1: Perfect integration and precise storage under your countertop
The Avintage AVU22TX1 service wine cellar is the ideal choice for those looking to incorporate a functional and stylish wine cellar under their kitchen counter. With a 22-bottle capacity*, this single-zone model ensures your wines are always at the optimal serving temperature.

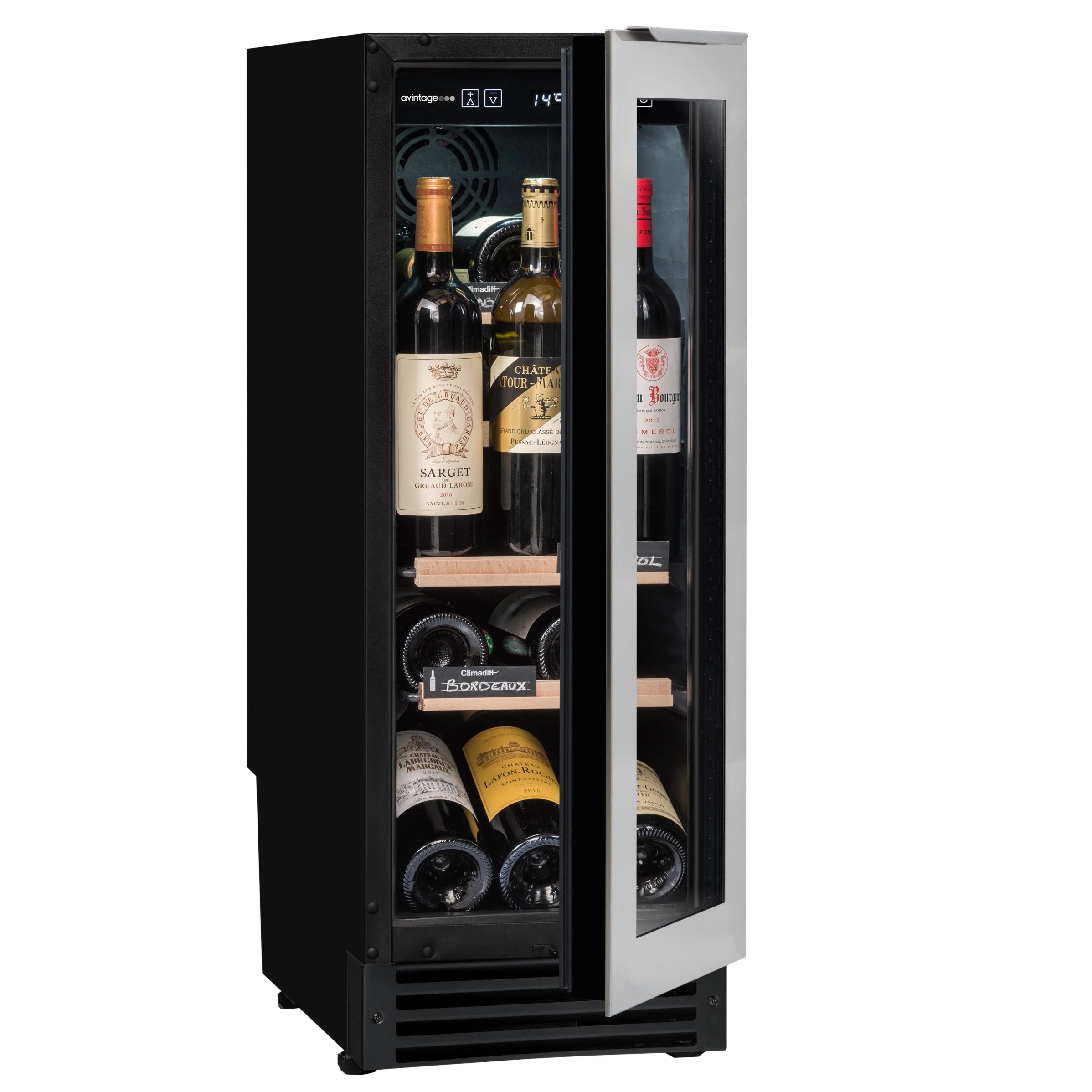

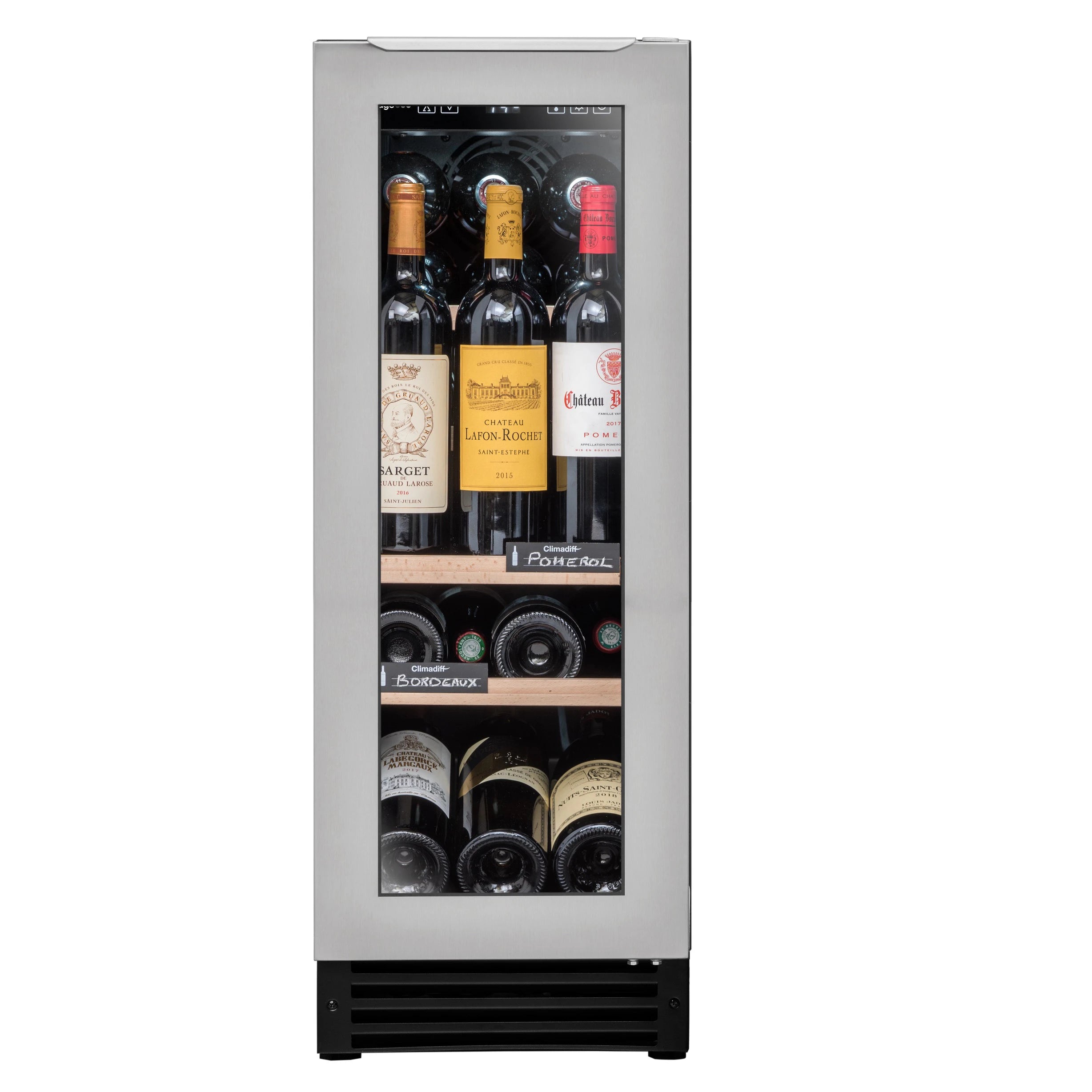

Its elegant design , with a black body and stainless steel door frame, blends harmoniously into any kitchen style. The reversible glass door, with a discreet under-counter handle, makes it easy to install, opening to the right or left according to your needs. The triple-glazed gray glass with anti-UV treatment effectively protects your bottles from harmful light.
The AVU22TX1 features a reliable compressor cooling system and ventilated cooling, offering a single adjustable temperature zone between 5°C and 20°C . This allows you to have both chilled white and rosé wines and room-temperature reds ready for tasting. The electronic control with a white-display thermometer ensures precise and easy-to-read temperature management.

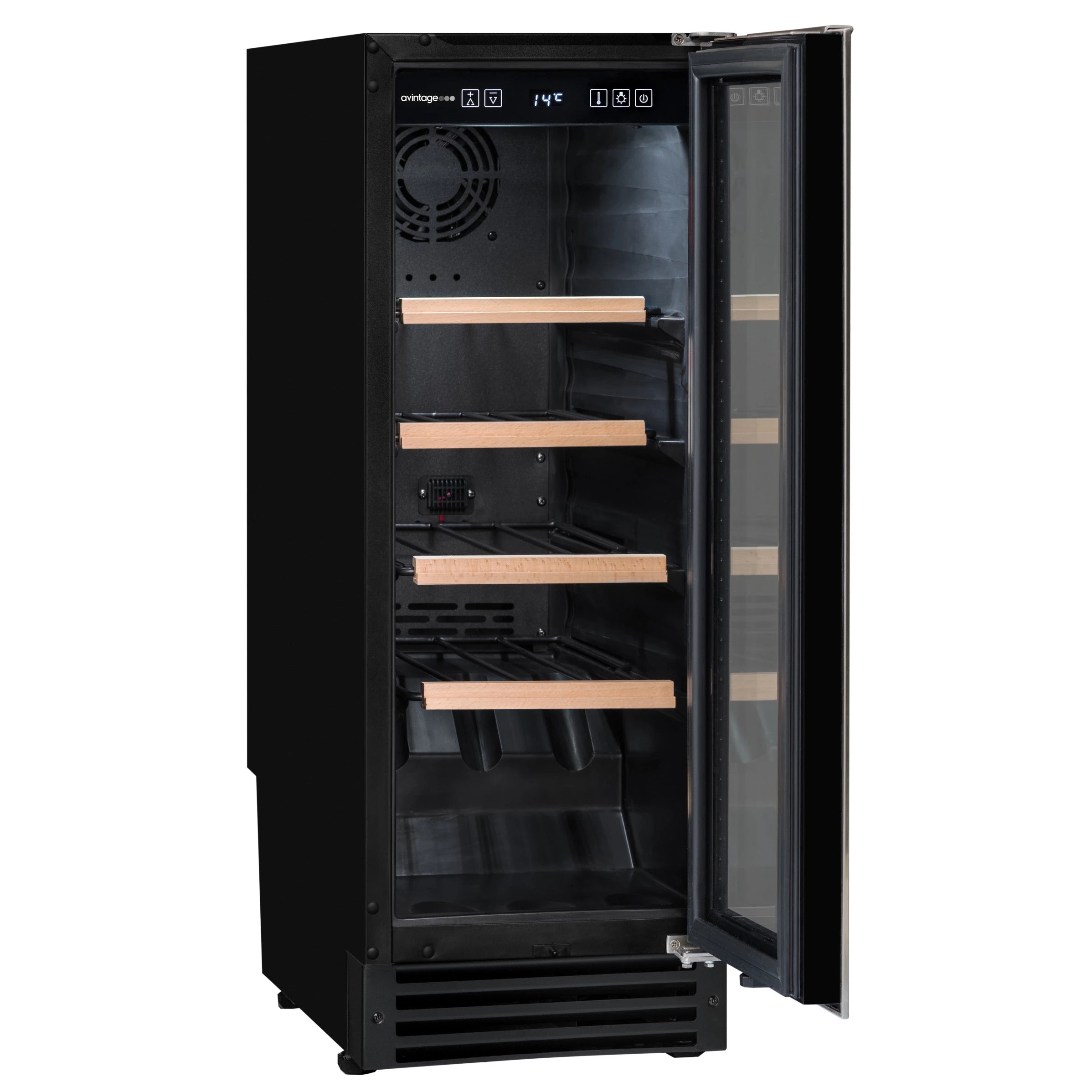

Accessing your bottles is easy thanks to its four semi-sliding steel wire shelves with wooden fronts . A practical feature is the ability to store up to three bottles upright , ideal for those you've already opened. The interior white LED lighting with a switch allows you to view your collection without disturbing the storage conditions.
To protect your wines, the wine cellar includes an anti-vibration system and a humidity-maintaining tank to ensure proper humidity. Visual and audible alarms will alert you to any condition that requires your attention.
This wine cellar is compatible with the Vinotag® app , allowing you to create a digital record of your wine cellar, receive peak and stock level alerts, and scan labels with Vivino® to access detailed information. You can pinpoint each bottle's location in the app for easy retrieval.

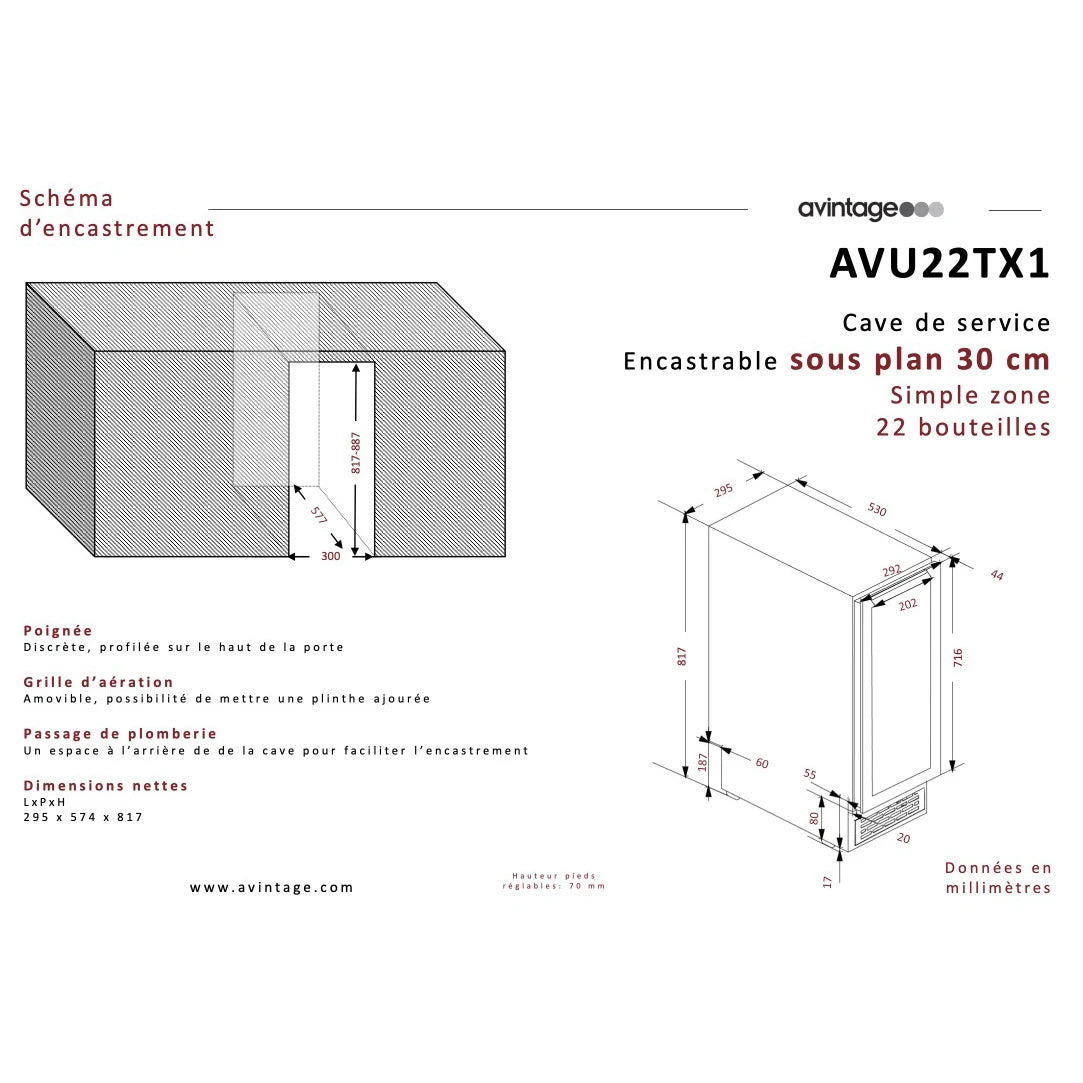

Undercounter installation is simple thanks to features like a rear plumbing pass-through, a removable vent, and 7 cm height adjustable feet. Net dimensions are 29.5 x 57.4 x 81.7 cm.
Manufactured under European environmental regulations, it uses environmentally friendly R600a gas. With an energy class of F and a low noise level of 37 dB, the AVU22TX1 is an efficient and discreet solution for preserving your wines.
Technical characteristics

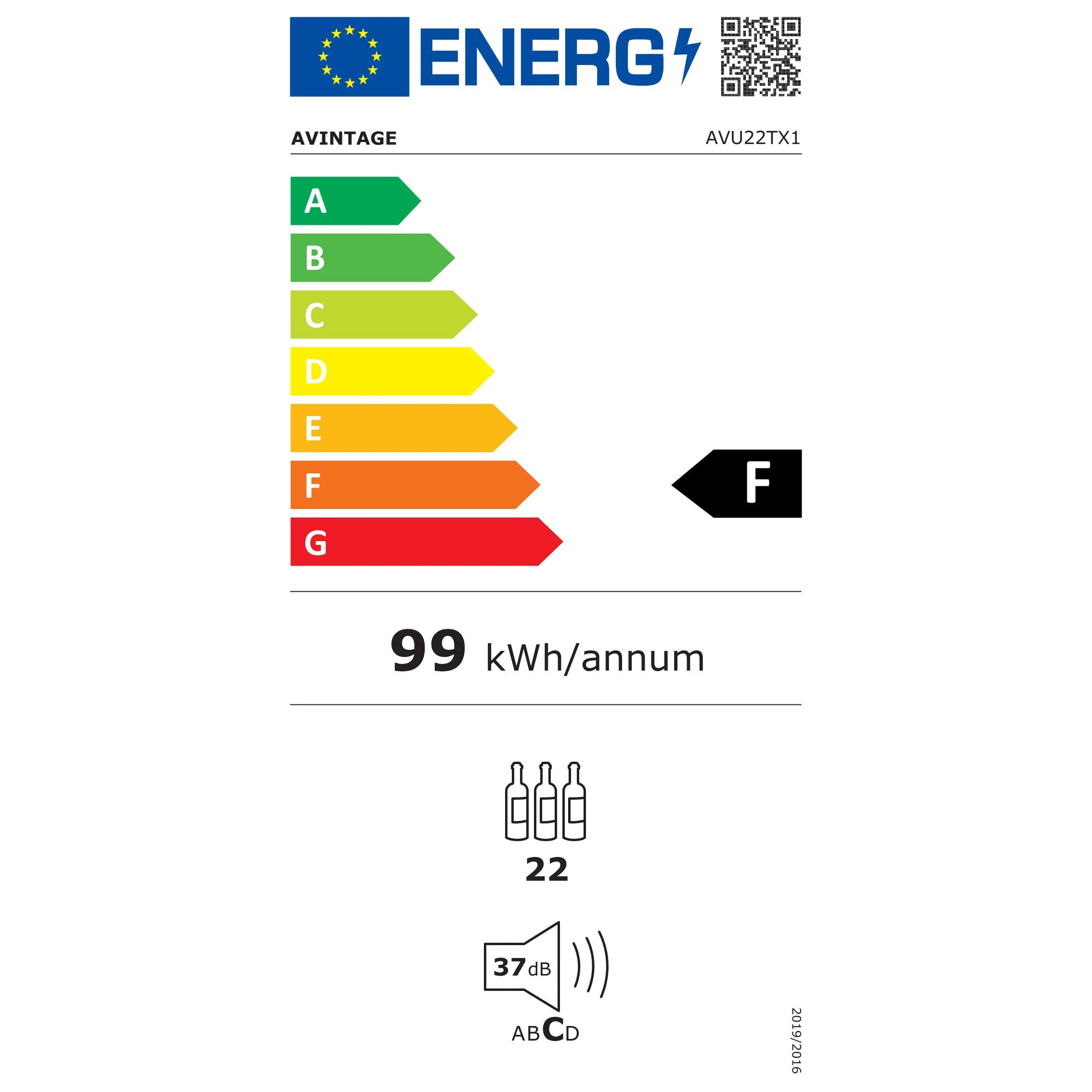

- Energy class: F
- Annual energy consumption: 99 kWh
- Climate class: SN
- Noise level: 37 dB
- EEI: 121.4
- Voltage: 220-240 V
- Power: 75 W
- Category: 2 - Winery
- Gas type: R600a
Brand | Avintage |
Cooling Technology | Compressor |
Temperature Zones | 1 Zone |
Device Type | Built-in |
Temperature Range | from 5°C to 20°C |
Color | Stainless steel |
Height | 81.7 cm |
Width | 29.5 cm |
Depth | 57.4 cm |
Weight | 23 KG |
Energy Efficiency Class | F |
Warranty | 3 years |
User Manual (📄 PDF) | Manual Built-in Wine Cooler 22 bottles Avintage AVU22TX1 |
Technical Sheet (📄 PDF) | Technical Sheet Built-in Wine Cooler 22 bottles Avintage AVU22TX1 |
